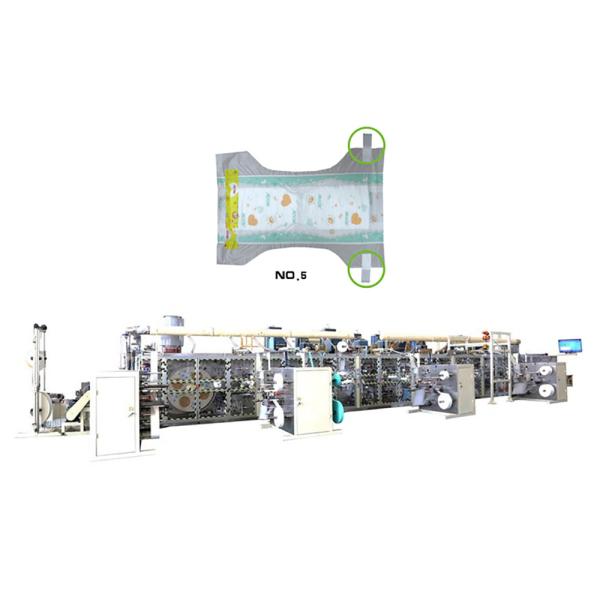

Baby Diaper Making Machine Full Servo Pampers Making Machine

Name: Baby Diaper Making Machine Full Servo Pampers Making Machine
Brand: PRINTYOUNG
Price: 1000000 USD

Quality Baby Diaper Making Machine Full Servo Pampers Making Machine wholesale

Brand Name : PRINTYOUNG

Model Number : PRY-NK600-SV

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 1000000 Set

Payment Terms : L/C, T/T

Supply Ability : 1 Set/Sets per Month

Delivery Time : 60 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Power : 300 KW (main machine)

Weight : 82000 kg

Production Capacity : 550pcs/min

Efficiency : ≥ 85%

Air pressure : 6 kg/cm2 ≥0.8mpa

Machine color : Rice white ,can be changed by order

Voltage : 380V

Dimension(L*W*H) : 25*2.1*4.8 M

Qualified rate : ≥ 97%

Working space : 33*10*5.5 M (L*W*H)

Product size : S,M,L,XL

Contact Now

baby diaper machine

Baby Diaper Making Machine Full Servo Pampers Making Machine

Technical Parameters

baby diaper machine
Design speed	600pcss/min
Working speed	550pcs/min
Qualified rate	≥ 97%(exclude the wastage due to the glue applicators and materials splicing joint)
Efficiency	≥ 85%
Installation capacity	~300 KW (main machine) ~390KW (main machine +glue system+ stacker)
Running capacity	~225KW(main machine); ~292.5KW (main machine +glue system+ stacker)
Electricity	380V,50HZ (Accept customized)
Wire	Three phases four wires 380V/50Hz (ground wire) 3X120mm³+1X70mm³+1X25mm³
Air pressure	6 kg/cm2 ≥0.8mpa
Total weight	82tons
Machine size	25×2.1×4.8 M(L×W×H)
Working space	33×10×5.5 M (L×W×H)
Machine color	Rice white ,can be changed by order
Product size	S,M,L,XL
Containers	5X40HQ

Spare Parts List

Name	Quantity	Name	Quantity
Maintenance Tools	1 set	thermocouple	2 pieces
Electric heater	5 pieces	transition wheel	3 sets
Cutting blade	2 pieces	Timing belt	3 pieces
Truncation blade	1 set	Conveying belt	2 pieces
Blower wire	1set	Power cable	1set
Electrical schematic diagram	1	back transmission diagram in PDF	1
instruction of main electrical elements	1	machine layout in PDF	1

Factory-Set-Up Demands

1.Without vibration,clean and clear environment,good ventilation,no flammable and explosive and corrosive substances around.
2.Flat concrete ground,concrete number should be at least 300#;ground level difference should be within 15-25mm,so that machine adjustment is more convenient.
3.Ground should have enough bearing capacity.Concrete ground thickness is no less than 200mm.if machine is put on the 2nd floor,concrete floor(reinforced concrete pouring) average bearing capacity is at least 3.5tons/sm.machine is put no more than on the 2nd floor.
4.To keep at least 1 meter distance between the back side of machine (including attached equipment) and the walls.
5.To prevent the accident due to the uneven ground.
6.The inside temperature in the factory is no less than 12-15.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.

A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;

2)We can send technicians (engineers) to your factory for installation and training.

You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.

For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.

We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:Shanghai company is 12 years old, the factory is more than 20years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
